MW-6L Semi-automatic Blow Molding Machine

1、
With PLC and computer,empower stable and easy operation machine.
2、
Energy-saving design and reasonable & compact mechanical design.
3、
Energy-saving design and reasonable & compact mechanical design.
Mr.wang
86-137-5766-8116
Mr.zhang
86-159-9061-7081
  • product manual
  • Product parameters

2-cha.jpgProducts produced

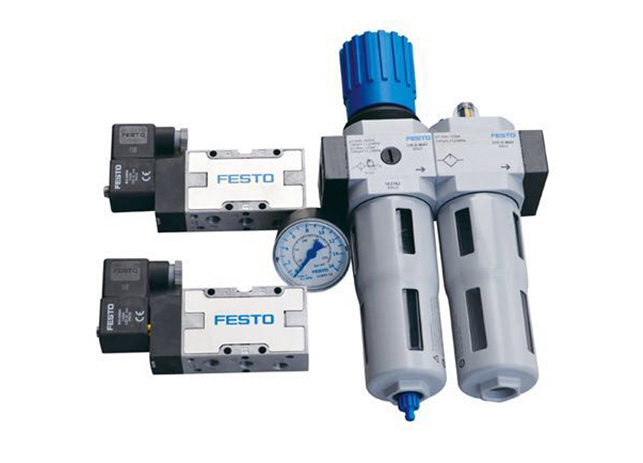

3-配.jpgAccessories

General InformationMW-6LMW-10LMW-JAR6L
锁模力Clamping Force20 T35 T20 T
最大开模行程
Max.Clamping Stroke230 mm230 mm230 mm
最大拉伸行程Max.Stretching Stroke380 mm380 mm380 mm
模具腔数Number of Cavities2 Cavities2 Cavities2 Cavities
理论产量Theoretical Output0.1-2.5 L ; 900 BPH   3-6 L ; 380 BPH3-6 L ; 500 BPH0.1-2.5 L ; 700 BPH   3-6 L ; 350 BPH
最大模具厚度Max.mould Thickness300 mm300 mm300 mm
模具最大尺寸Space Between Tie Bars280*500 mm280*500 mm280*500 mm


Electrical System

电压Voltage380V/3PH/50HZ or Specail Order(支持定制）380V/3PH/50HZ or Specail Order(支持定制）380V/3PH/50HZ or Specail Order(支持定制）
加热段数
Number of Heating Zone2 Sections4 Sections4 Sections
总功率（满负荷）Total power (full loaded)11 Kw20 Kw11 Kw


Container

最大瓶子容量Max.Container volume0.1-2.5 L（2Cav）  3-6L（1Cav）3-6L（2Cav）0.1-2.5 L（2Cav）  3-6L（1Cav）
最大瓶子口径
Max.Diameter Range15-60 mm15-60 mm50-120 mm
最大瓶子直径Max.Container Diameter35-220 mm35-220 mm35-220 mm
最大瓶子高度Max.Container Height450 mm450 mm450 mm


Auxiliary System

低压工作压力Low Pressure Air pressure8-10 Bar8-10 Bar8-10 Bar
高压吹气压力
High Pressure Air pressure30 Bar30 Bar30 Bar
排气量Air Flow Rate1.2/302.0/301.2/30


Dimension & Weight（L*W*H）

吹瓶主机Bottle Molding Machine160*63*190 CM165*75*190 CM160*630*190 CM
烘箱
Oven138*62*140 CM225*69*152 CM225*69*152 CM
重量Net Weight1 Ton1.2 Ton1.1 Ton
